Design

​

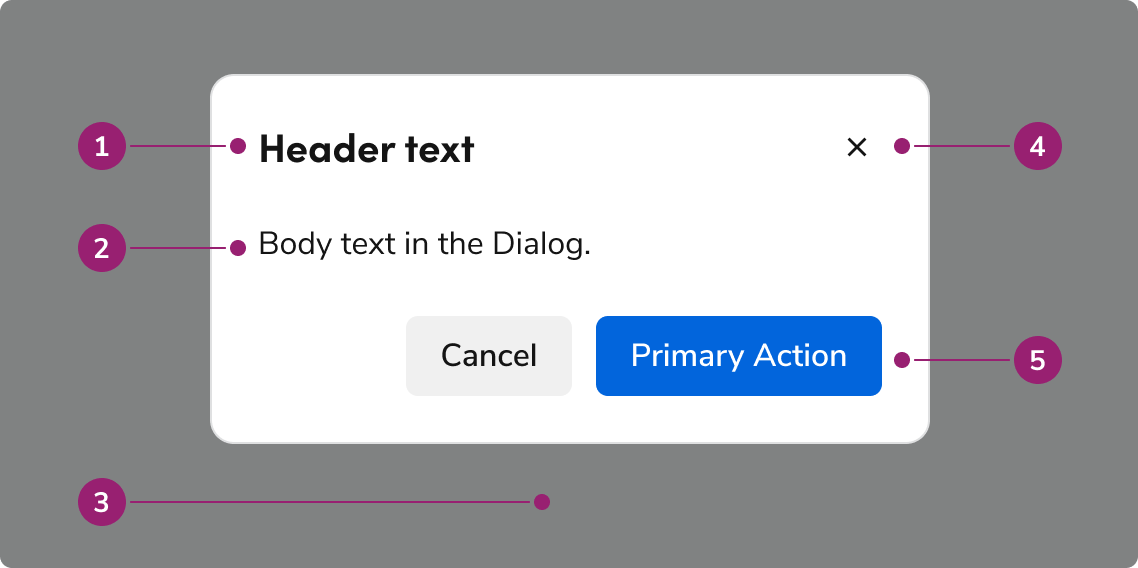

Anatomy

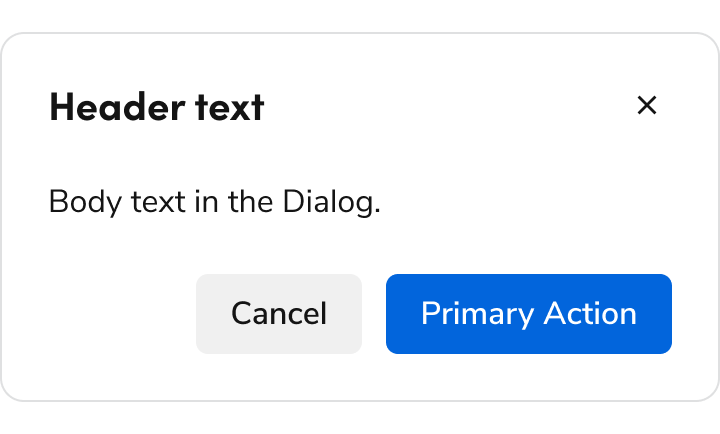

The Dialog consists of five primary elements that work together to temporarily block interactions within the main view.

1. Header
2. Body content
3. Backdrop
4. Close action
5. Footer actions

​

Options

The Dialog supports flexible content, footer actions, and sizing configurations to accommodate various modal scenarios.

​

Body content

Add any type of content into the body of a Dialog.

​

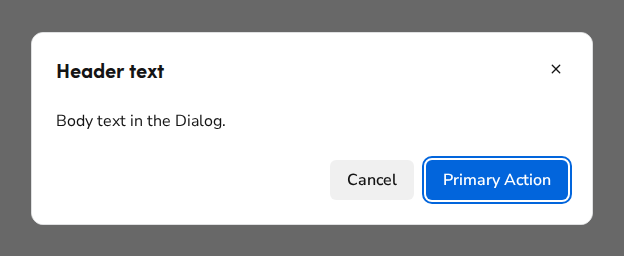

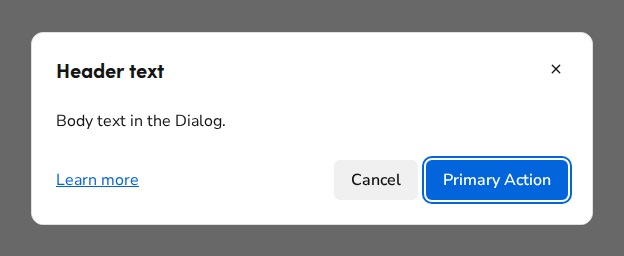

Footer actions

​

Sizing

The Dialog has 3 set sizing options: default, large, and fullscreen.

​

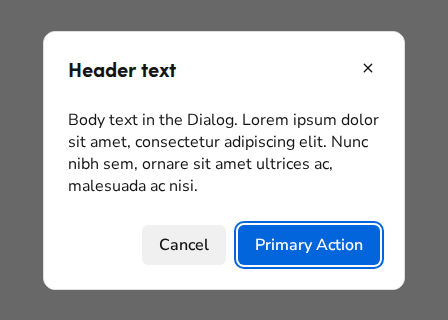

Default

​

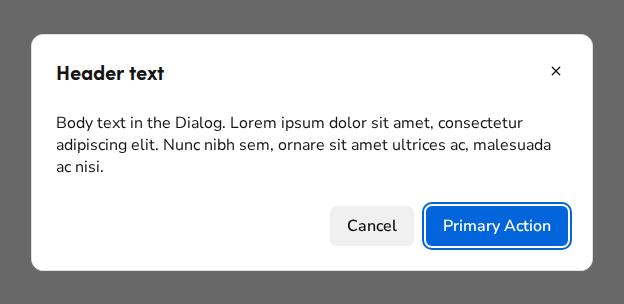

Large

​

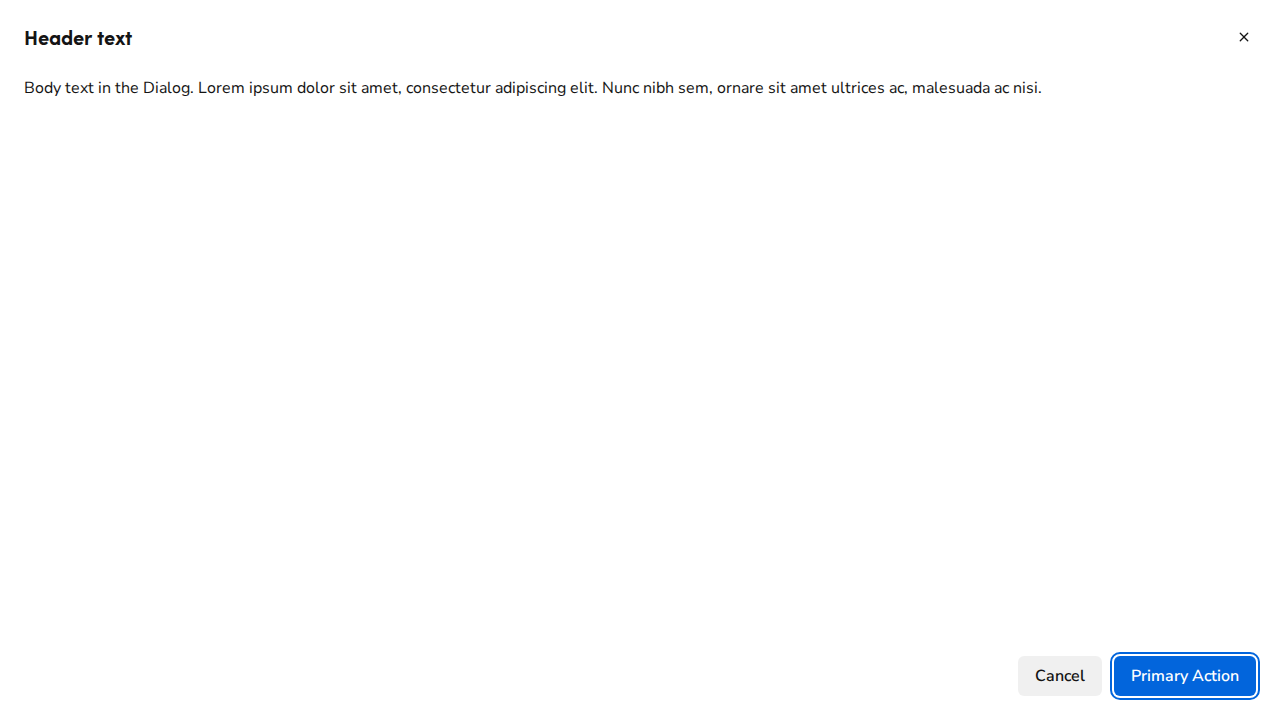

Fullscreen

​

Sizing table

​

Behavior

The Dialog responds to content overflow and scrolling requirements while maintaining focus management.

​

Overflow handling

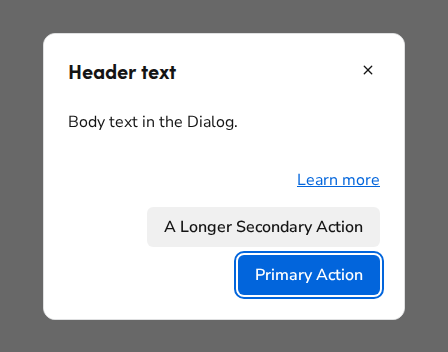

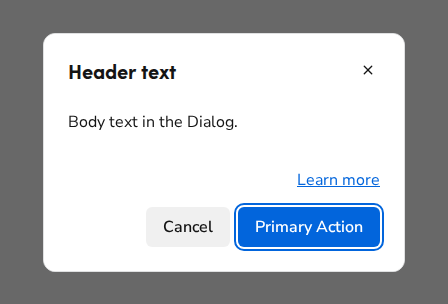

Content in the Dialog will wrap, rather than truncate. Header content will avoid colliding with the close action, while footer actions will wrap to the right, with the right-most actions being at the bottom. Footer actions can have a custom overflow behavior if needed.

​

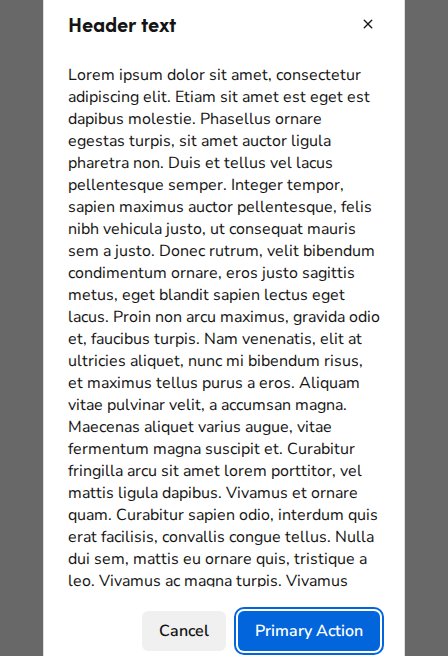

Scrolling

The body region of the Dialog will scroll when space is not available. The Dialog’s height will fill the height of the browser window (minus 1 rem top and bottom margins), and scroll past that point.

​

Usage Guidelines

Use the Dialog to bring focus to important tasks that require user action before continuing.

​

When to Use

Use Dialogs to bring focus to important tasks. Situations that require user action before continuing, confirmations, and quick, infrequent tasks are among the most common use cases. Dialogs are interruptive UIs by design. They limit what users can do and may disorient users when used mid-flow. Use Dialogs only as needed.

​

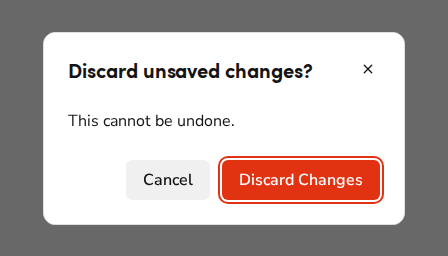

Use Dialogs to confirm important user actions

Use Dialogs to confirm important, higher-risk actions. Destructive, hard to reverse decisions particularly benefit from Dialog usage. Not all actions require a confirmation; use only as needed.

​

When not to use

​

Don’t overuse Dialogs

It is easy to overuse Dialogs in flows, particularly in complex UIs. In general, it is better to reduce Dialog usage to only what is needed, and find alternatives to surface information on the page. Dialogs have many downsides. They:

• Restrict a user’s ability to perform other tasks.
• Block other content on the screen.
• Can be difficult for users to find and relocate.
• Are difficult to directly link to.
• Add additional interaction steps to both open and close.

​

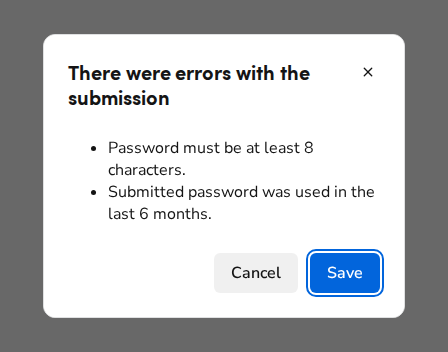

Don’t use Dialogs to communicate errors

Using a Dialog to convey errors is an anti-pattern. It requires a user to actively remember its contents once the Dialog is closed. See the error pattern for alternatives.

​

Alternatives

​

Dialog vs Alert

Dialogs are interruptive by design, while an Alert is non-disruptive. Prefer using an Alert when information needs to be conveyed, only using a Dialog when there is a clear need to interrupt a flow, such as a confirmation of destructive or irreversible actions.

​

Dialog vs Drawer

​

Dialog vs Popover

Both Dialogs and Popovers overlay elements on the page. Dialogs are preferable when a situation requires user attention and for more complicated flows.

​

How to Use

​

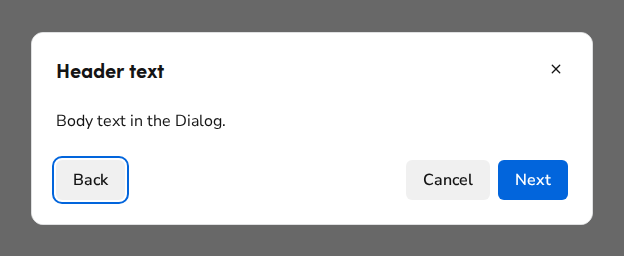

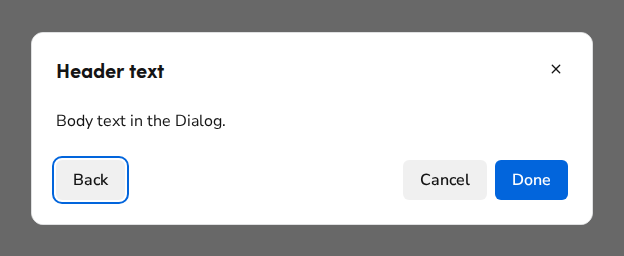

Multi-step Dialogs

Dialogs of all sizes may involve multiple steps. We recommend using the footer arrangement shown for user navigation. Adjust the final step’s primary action copy as needed.

​

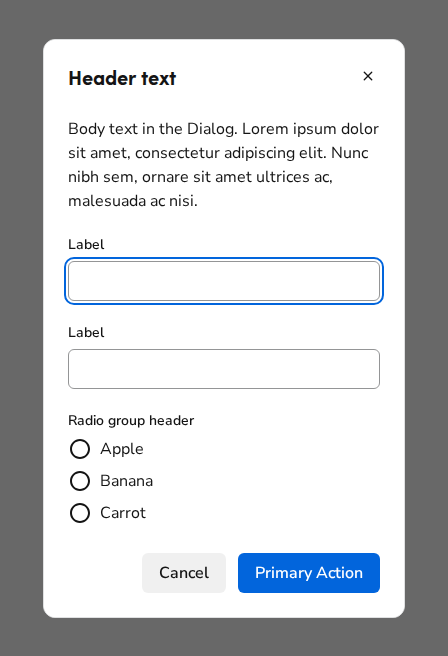

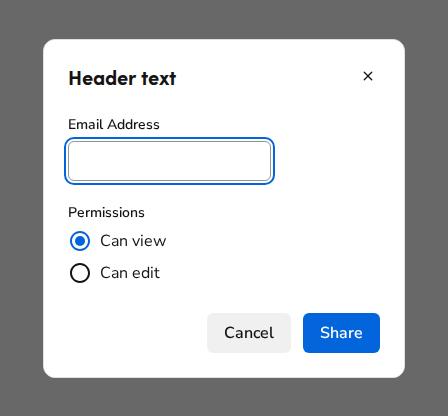

Forms in Dialogs

A form can exist within a Dialog. Beyond the standard usage guidance to Forms, small Dialogs should especially keep form length low, and make use of multi-steps when needed. Fullscreen Dialogs may use forms as complex as an ordinary page.

​

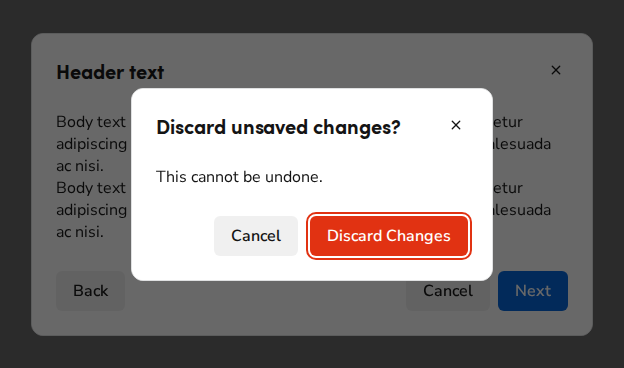

Avoid stacking smaller Dialogs together

​

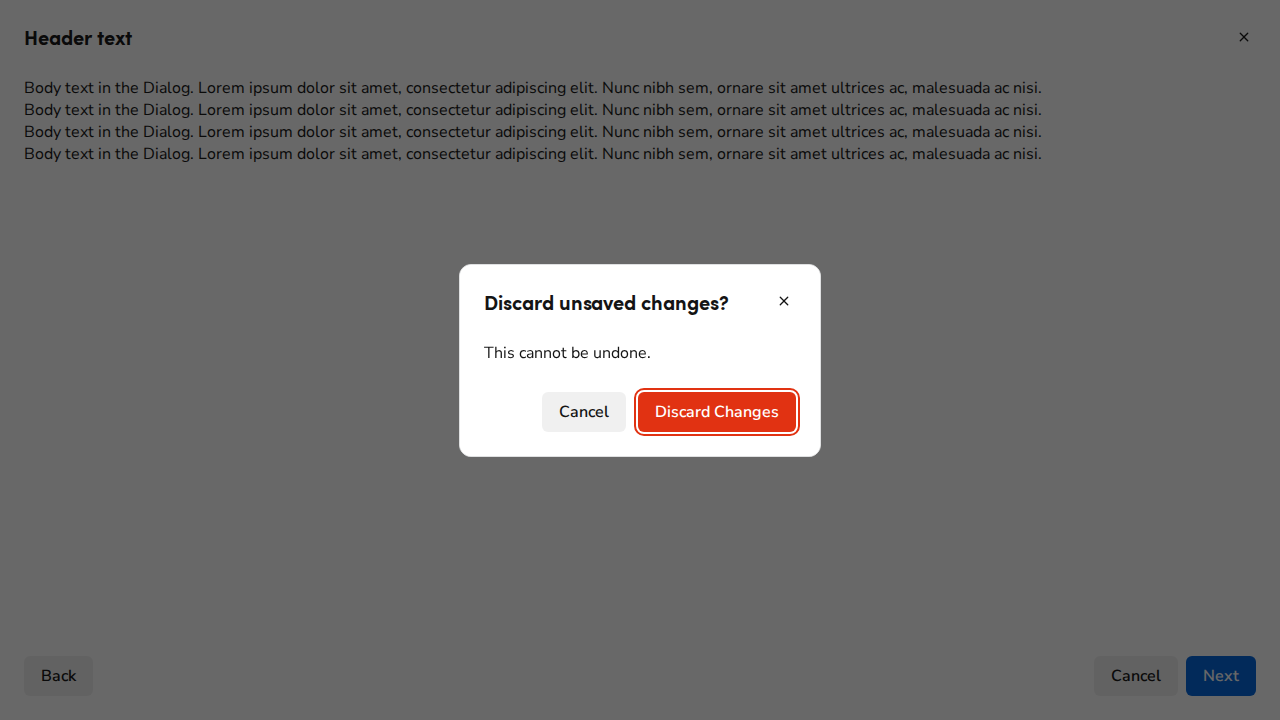

Stacking a Dialog with a fullscreen Dialog

Since a fullscreen Dialog mimics a standard page, stack a smaller Dialog as needed.

​

Content

Content within the Dialog should be concise, actionable, and clearly communicate the task or information.

​

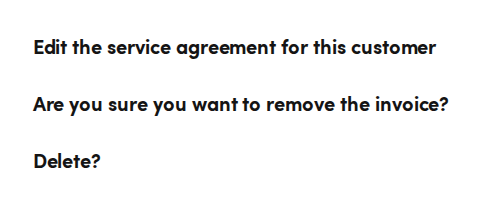

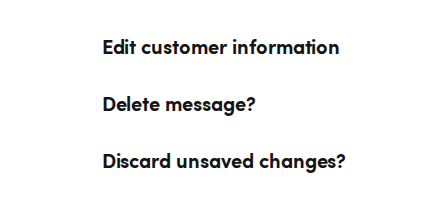

Write titles as verbs

Titles should have a clear verb + noun question or statement.

​

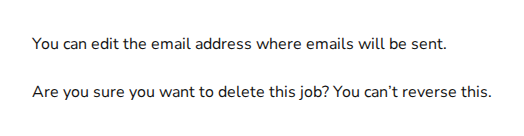

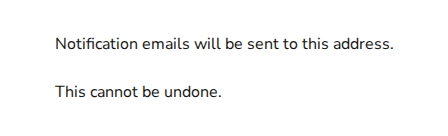

Make body content concise and actionable

Use imperative verbs when telling users what they need to know or do. Don’t use permissive language like “you can”.

​

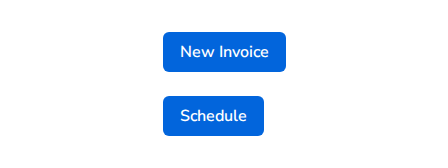

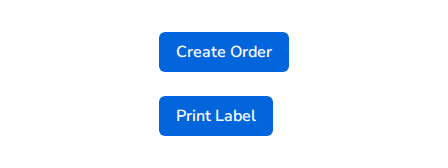

Buttons should be clear, predictable, and action-oriented

Users should be able to predict what will happen when they click a button. Lead with a strong verb that encourages action. Use a verb/noun pair on actions in most cases. Common actions like Save, Close, or Cancel do not require an accompanying noun.

​

Keyboard Interaction

Users can navigate the Dialog using standard keyboard controls.

​

Accessibility

​

Focus management

There are a few different things to keep in mind with the Dialog’s focus / keyboard behavior.

Trap focus within the Dialog

By default, the Dialog will trap focus within itself. Elements outside of the Dialog would not be accessible by keyboard, unless another element itself took the focus.

First focus management

What element the Dialog focuses on open is dependent on a few factors:

• If the body content has a focus-able element, the Dialog will focus on the first of these elements.
• If the body does not have have an element, then the following is the preferred first-focus element:
  • With no actions at all, focus first on the close action.
  • When a primary action exists, focus first on the primary action.

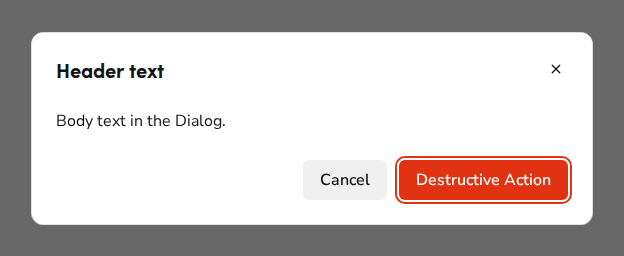

  • When a primary destructive action exists, focus first on the secondary cancel action.

Return focus on close

When a Dialog is closed and the original context that triggered the Dialog is still present, focus should return to the element that triggered the Dialog. For more guidance on focus management with dynamic content, see changing content best practices.
