Looking for design and usage docs?The Design Spec and Usage Guidelines documentation for the component will be available soon. Reach out to our team in the #ask-designsystem channel if you have questions or need assistance!

Common Examples

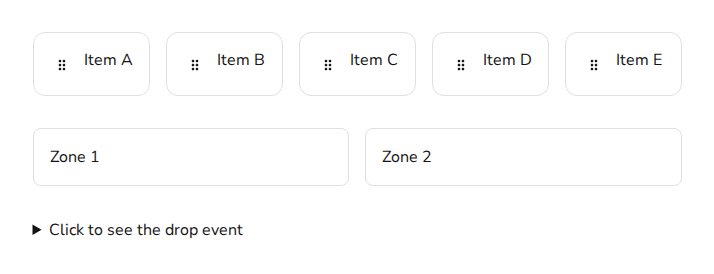

Bucketing

DndSort is a great way to create a drag-and-drop interface for moving items between different buckets.

Demo

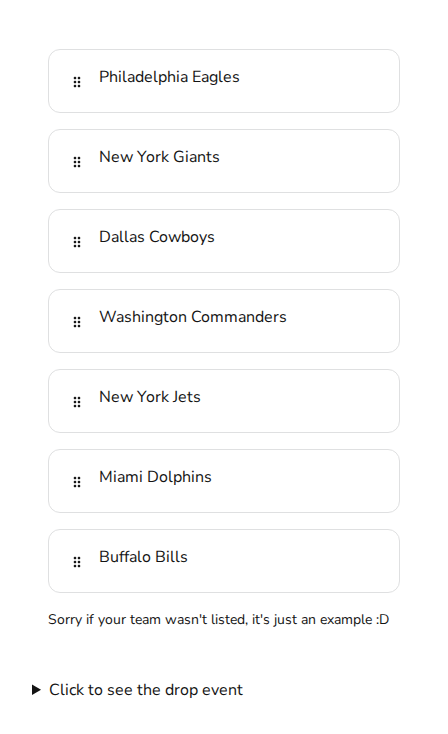

Sorting a list

DndSort is also a great way to create a drag-and-drop interface for sorting a list of items.

Demo

Bucket and sort

DndSort can also be used to create a drag-and-drop interface for moving items between different buckets and sorting them within those buckets.Note this example also demonstrates cards initially beginning outside of the buckets.

Demo

Validation

DndSort provides ways to validate the drag-and-drop interaction. This is useful for preventing invalid interactions, such as moving an item to a bucket that does not accept it.

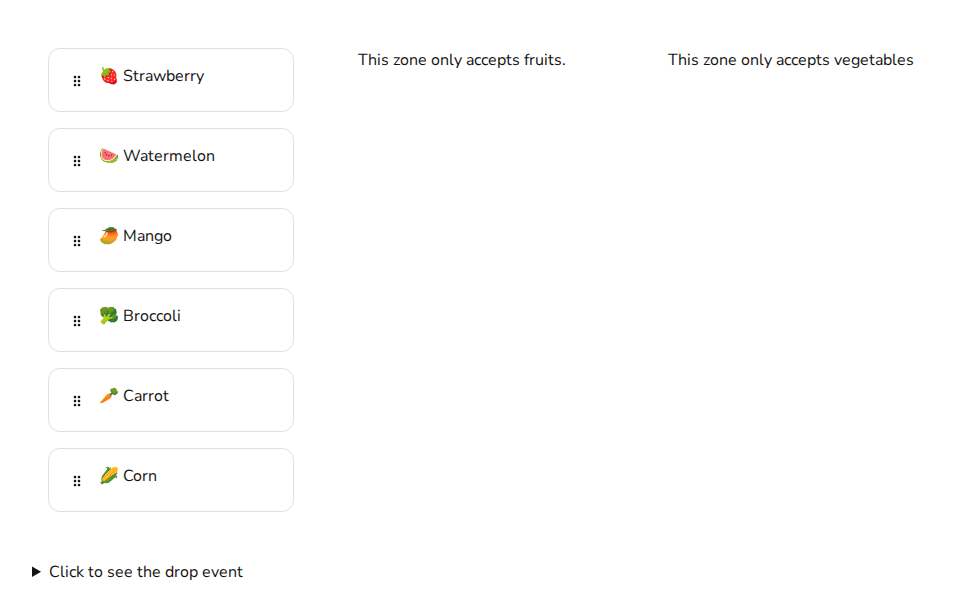

Basic Validation

The simplest way to validate is to use the type prop on the DndSort.Card component in conjunction with acceptedTypes prop on the DndSort.Zone component.

<DndSort.Zone acceptedTypes={["fruit"]}>
  <DndSort.Card type="fruit">🍎 Apple</DndSort.Card>
</DndSort.Zone>

Demo

Advanced Validation

A more advanced way to validate is to use the validator prop on the DndSort.Zone component. This prop takes a function which receives the item id. The function should return a boolean indicating whether the drop is valid. Here are some examples of how to use the validator prop:

// Limit the zone to only accept items with ids in an allowed list
const validator = (id) => validIds.includes(id);
<DndSort.Zone validator={validator}></DndSort.Zone>;

// Limit the based on a property of the item
const validator = (id) => people[id].isFriendly;
<DndSort.Zone validator={validator}></DndSort.Zone>;

// Limit the number of items in a zone to 5
const validator = () => zoneItems.length <= 5;
<DndSort.Zone validator={validator}></DndSort.Zone>;

Customization

DndSort provides a number of ways to customize the drag-and-drop interaction. This includes customizing the appearance of the items and zones.

Advanced zone rendering

The advancedRenderer prop of DndSort.Zone is an alternative to children, allowing you to customize the appearance of the drop zone based upon its internal state.This allows you to show different content when a drag is happening, when an item is over the drop zone, or if the dragged item is valid/invalid for the drop zone.

Custom card preview rendering

The previewRenderer prop of DndSort.Card offers a means to customize the appearance of the card when it is being dragged. This is useful for showing a different appearance for the card, such as a simpler version of a complex card.

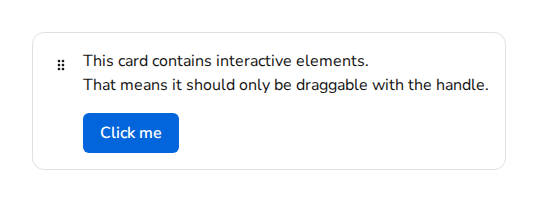

Interactive Children

By default, the DndSort.Card places a button around the entire card. This is optimal for accessibility. But if you want to place interactive elements inside your card, it harms accessibility. To resolve this issue, set dragOnlyWithHandle on the DndSort.Card if your card has interactive elements.

Demo

Anti-Patterns

Nesting

DndSort does not support nesting. i.e. you may not use a zone as an item.This is an intentional design decision to guarantee these components meet our accessibility and usability standards.If you have a use case that requires nesting, please reach out to us. We would love to hear about your use case and help you find a solution.

Best Practices

dragOnlyWithHandle

<DndSort.Card dragOnlyWithHandle>
  <Button />
</DndSort.Card>

Use the dragOnlyWithHandle prop if your card contains interactive elements.

<DndSort.Card>
  <Button />
</DndSort.Card>

Don’t

Don’t use interactive elements in cards without dragOnlyWithHandle.

import { DndSort } from "@servicetitan/anvil2";

function ExampleComponent() {
return (

<DndSort onDrop={(event) => console.log(event)}>
  {/* DndSort.Zone and DndSort.Card components */}
</DndSort>
); }

`DndSort` Props

DndSort is the root component that must wrap DndSort sub-components. It provides the context and internal logic for the drag-and-drop interaction.

children

React.ReactNode

Various children elements including DndSort.Zone and DndSort.Card.

onDrop

(DndSortChangeEvent) => void

Callback function fired when an item is dropped.

import { DndSort } from "@servicetitan/anvil2";

function ExampleComponent() {
  return (
    <DndSort.Card
      id="card-1"
      label="Card 1"
      dragOnlyWithHandle={false}
    >
      Card content
    </DndSort.Card>
  );
}

`DndSort.Card` Props

DndSort.Card is a component that represents a card that can be dragged and dropped. It uses Card internally and most of the props are forwarded to the Card.

string | number

required

The unique identifier for the card.

label

string

required

The label for the card, used for accessibility.

children

React.ReactNode

The content of the card.

dragOnlyWithHandle

boolean

default:"false"

If true, the card can only be dragged when the drag handle is used. If false, the card can be dragged by any part of it.

onDrop

(DndSortChangeEvent) => void

Callback function to be called when the card is dropped. Same as onDrop on the DndSort component.

previewRenderer

({ valid }) => React.ReactNode

Advanced. A function that returns a React node to be used as the preview renderer.

type

string

The type of the card, used for validation (optional).

import { DndSort } from "@servicetitan/anvil2";

function ExampleComponent() {
return (

<DndSort.Zone
  id="zone-1"
  label="Zone 1"
  sortable={false}
  orientation="vertical"
>
  {/* Zone content */}
</DndSort.Zone>
); }

`DndSort.Zone` Props

DndSort.Zone is a component that represents a drop zone where items can be dropped. It may either be sortable or non-sortable. Only the basic styling is applied to the zone (i.e. border and background during a drag-and-drop interaction). Props are forwarded to the underlying div element, so you can provide styles, className, and other props to customize the appearance of the zone.

string | number

required

The unique identifier for the zone.

label

string

required

The label for the zone, used for accessibility.

acceptedTypes

string[]

An array of accepted types for this zone. If not provided, all types are accepted. Compares against the type prop of the card.

advancedRenderer

({ isDragging, isOver, isValid }) => React.ReactNode

Advanced. A function to render the drop zone using internal state parameters.

children

React.ReactNode

The contents of the zone.

defaultDropPosition

"start" | "end"

default:"end"

The default position where items will be dropped if dropped directly onto the zone.

gap

GapSize

default:"4"

The gap between items in the zone. See Flex for more info. Important for sortable zones to maintain enough space for the sort line.

orientation

"horizontal" | "vertical"

default:"vertical"

The orientation of the items in the zone.

sortable

boolean

default:"false"

If true, the zone is sortable. If false, the zone is not sortable.

sortedIds

(string | number)[]

default:"[]"

Required if sortable. An array of sorted IDs for the items in the zone, must match render order.

validator

(id) => boolean

A function to validate the drop action. Given an item’s id, this function must return true for valid drops, false for invalid drops.

DndSortChangeEvent

draggableId

string | number

The ID of the draggable item that was dropped.

previousZoneId

string | number | null

The ID of the previous drop zone where the item was located before being dropped. This can be null if the item is coming from outside of any zone.

previousZoneSort

"(string" | "number)[]" | "null"

An array representing the sort order of items in the previous drop zone before the drop. This can be used to update the order of items in the previous zone. This value is null if the previous drop zone (if any) was not sortable.

valid

boolean

Indicates whether the drop was valid based on the accepted types and custom validation.

zoneId

string | number | null

The ID of the drop zone where the item was dropped. This can be null if the item was not dropped in a zone.

zoneSort

"(string" | "number)[]" | "null"

An array representing the sort order of items in the drop zone after the drop. This can be used to update the order of items in the zone. This value is null if the target drop zone (if any) is not sortable.
