Dnd Sort – Design

​

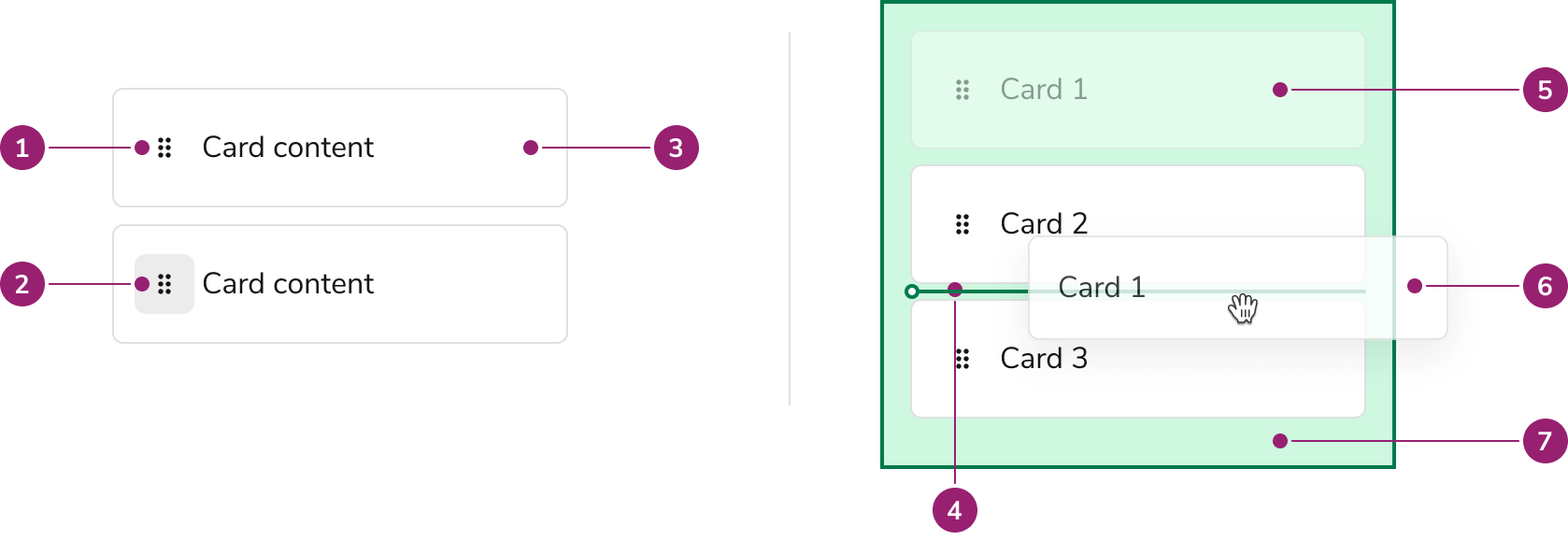

Anatomy

1. Drag Handle
2. Drag Handle Button
3. Draggable Card
4. Sort Line
5. Drag Ghost
6. Drag Preview
7. Drop Zone

​

Options

​

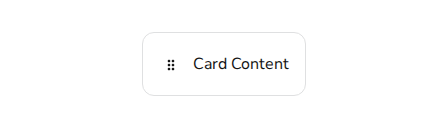

Draggable Card

Besides the handle, the Draggle Card’s content is highly customizable. Draggable Card can use many of the features of the base Card component.

​

Draggable Target

Where a user can grab a Card is configurable to the whole card or only on the drag handle.

​

Whole Card

Use the whole Card as a draggable region when:

• Users do NOT need to select the text of the Card
• D&D is a major feature of the content
• Outside of an overflow menu, other inner Card actions are not present

​

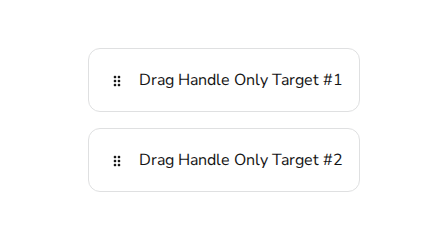

Drag handle only

Use the Drag Handle only as the draggable region when:

• A user should be able to select the text of the Card
• The Card is very large
• There are other, non-overflow menu actions a user can take in the Card. This could be something as simple as a Checkbox.

​

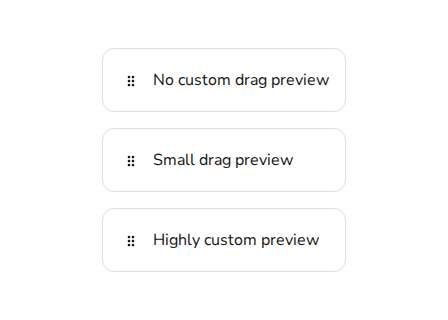

Drag Preview

Drag Previews, what is displayed while dragging, can be customized.

​

Drop Zone

​

Sort Line

​

Behavior

​

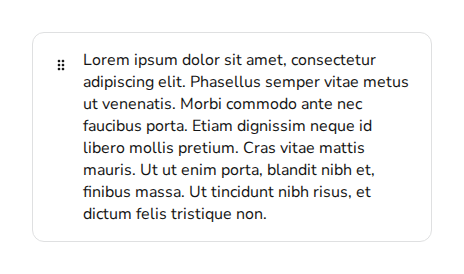

Drag handle alignment

The drag handle is always top-aligned in the Draggable Card. The rest of the card content can be vertically aligned as desired.

​

Accessibility

​

Provide alternatives to Drag and Drop

While Dnd Sort is keyboard navigable, it is still preferable that users have alternatives to using drag and drop functionality to complete a task.

​

Usage Guidelines

​

Examples of DND Sort

​

Sorting a List

Sorting a list is the primary usage of Dnd Sort. This can be done vertically and horizontally.

​

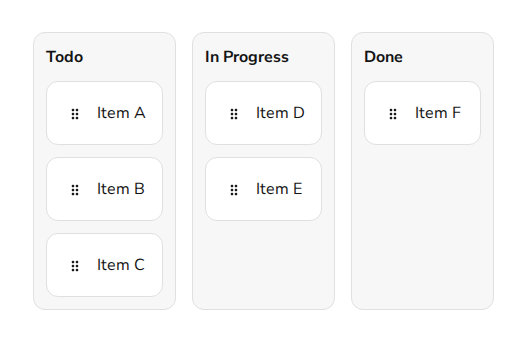

Kanban-style sort

Also known as bucketing. Note that the Card containers & text are not explicitly part of the Dnd Sort component.

​

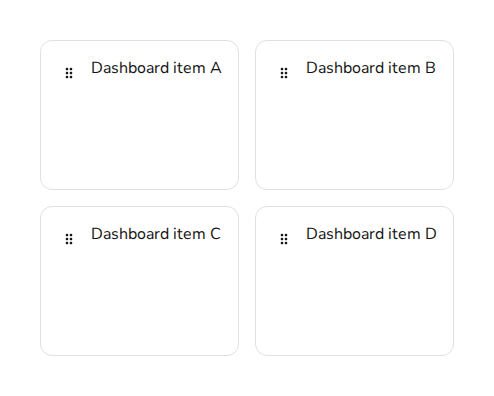

Dashboard-type arrangements

​

How to Use

Use the base configurations of icons, drop zones

---
