Grid – Code

Implementation
Grid Props
Grid.Item Props

Common Examples

import { Grid } from "@servicetitan/anvil2";

const ExampleComponent = () => (
  <Grid templateColumns="repeat(3, 1fr)" gap="2">
    <Grid.Item>First</Grid.Item>
    <Grid.Item gridColumn="span 2">Spans two columns</Grid.Item>
  </Grid>
);

Creating CSS Grid layouts

The Grid component renders a div with display: grid. Set inline to render display: inline-grid instead. Track sizing, placement, alignment, and spacing are props. Each prop is written as an inline style and maps to a CSS property.Grid.Item renders the cell: a div that accepts placement props such as gridColumn, gridRow, and alignSelf. Any child can sit in the grid. Use Grid.Item when the cell needs those props and is not already a component that accepts layout utilities. The playground puts gridColumn and gridRow on Card because Card accepts those props directly.A Grid is always a grid container. Nested inside another Grid, it is also a grid item, and the placement props apply to that outer grid. Nested inside Flex, it is a flex item, and the flex item props apply.Layout props are merged after style, so they override the same CSS property set on style. className is combined with the component class.

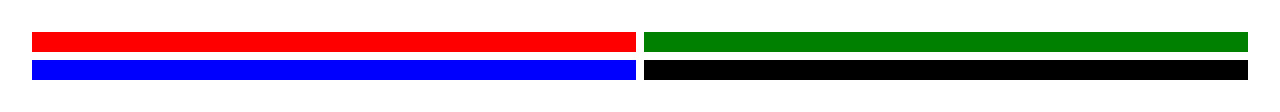

Responsive props

sm, md, lg, xl, and xxl override props from that viewport width up. Widths come from the Hammer breakpoints:

Prop	Applies at
`sm`	`640px` and wider
`md`	`768px` and wider
`lg`	`1024px` and wider
`xl`	`1280px` and wider
`xxl`	`1536px` and wider

Base props apply at every width, including below 640px. There is no xs prop. Each property resolves on its own: the largest matching breakpoint that sets it wins, and otherwise the base value is used.A breakpoint object accepts the container, placement, and flex props. It does not accept inline. Nested sm, md, lg, xl, or xxl keys inside a breakpoint object are ignored.The example below is one column by default and two columns from md up.

Best Practices

Use Layout for the column structure of a page.
Use Grid for CSS Grid regions inside that content.
Use Grid.Item for a cell that needs placement props. Pass those props to Card (or another layout-aware component) when that component is the cell.

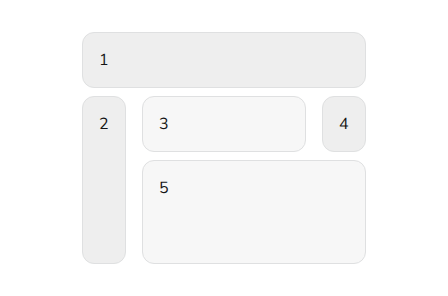

The playground uses Card only to visualize areas. See Card usage guidelines.

React Accessibility

Grid and Grid.Item render div elements. They do not set a role, and they do not handle keyboard interaction. Put focusable controls in the cell content. A generic div does not receive an accessible name from aria-label or aria-labelledby alone. To name the region, set a role that supports an accessible name, such as role="region", together with aria-label or aria-labelledby.gridColumn, gridRow, and order change visual position only. Assistive technology follows DOM order. Keep the source order in the reading sequence you want announced.

<Grid
  alignContent="stretch"
  alignItems="stretch"
  autoColumns="auto"
  autoRows="auto"
  columnGap="2"
  gap="4"
  inline={false}
  justifyContent="start"
  justifyItems="start"
  placeContent="center"
  placeItems="center"
  rowGap="2"
  templateAreas="'header header header' 'body body body'"
  templateColumns="repeat(3, 1fr)"
  templateRows="auto"
/>

`Grid` Props

Grid accepts every div prop, including children, className, style, and ref. The props below are optional. They are grouped by role.

Container

These props configure the grid container. gap, rowGap, and columnGap use the spacing scale (Spacing). Every other prop in this group maps to the CSS property named in its description. inline sets display.

CSSProperties["alignContent"]

Aligns the grid tracks along the block axis when the container has extra space. Maps to align-content.

CSSProperties["alignItems"]

Aligns items along the block axis inside their grid areas. Maps to align-items.

CSSProperties["gridAutoColumns"]

Sets the size of implicit columns. Maps to grid-auto-columns.

CSSProperties["gridAutoRows"]

Sets the size of implicit rows. Maps to grid-auto-rows.

GapSize

Sets the column gap. Accepts a spacing step from 0 through 14, or "half". Numbers and numeric strings match (4 and "4"). Maps to column-gap. See Spacing.

GapSize

Sets the row and column gaps together. Accepts a spacing step from 0 through 14, or "half". Numbers and numeric strings match (4 and "4"). Maps to gap. See Spacing.

boolean

default:"false"

Renders display: inline-grid. When false, Grid renders display: grid.

CSSProperties["justifyContent"]

Aligns the grid tracks along the inline axis when the container has extra space. Maps to justify-content.

CSSProperties["justifyItems"]

Aligns items along the inline axis inside their grid areas. Maps to justify-items.

CSSProperties["placeContent"]

Sets align-content and justify-content together. Maps to place-content.

CSSProperties["placeItems"]

Sets align-items and justify-items together. Maps to place-items.

GapSize

Sets the row gap. Accepts a spacing step from 0 through 14, or "half". Numbers and numeric strings match (4 and "4"). Maps to row-gap. See Spacing.

CSSProperties["gridTemplateAreas"]

Names grid areas for gridArea placement. Use CSS grid-template-areas syntax, with each row quoted: "'header header' 'sidebar content'". Maps to grid-template-areas.

CSSProperties["gridTemplateColumns"]

Defines the column tracks, including size and repeat patterns. Maps to grid-template-columns.

CSSProperties["gridTemplateRows"]

Defines the row tracks, including size and repeat patterns. Maps to grid-template-rows.

Placement

<Grid templateColumns="1fr 1fr">
  <Grid gridColumn="1 / 3" alignSelf="start" order={0}>
    Nested grid
  </Grid>
</Grid>

These props place a Grid when it is a child of another grid. The same prop names exist on Grid.Item. order also applies when Grid is a flex item.gridColumn, gridRow, and order change visual position only. DOM order stays the source order.

CSSProperties["alignSelf"]

Aligns this element inside its grid area along the block axis, overriding the container alignItems. Also applies when the element is a flex item. Maps to align-self.

CSSProperties["gridArea"]

Places the element in a named area, or sets the row and column lines in one value. Maps to grid-area.

CSSProperties["gridColumn"]

Sets the column start and end lines. Shorthand for gridColumnStart and gridColumnEnd. Maps to grid-column.

CSSProperties["gridColumnEnd"]

Sets the column end line. Maps to grid-column-end.

CSSProperties["gridColumnStart"]

Sets the column start line. Maps to grid-column-start.

CSSProperties["gridRow"]

Sets the row start and end lines. Shorthand for gridRowStart and gridRowEnd. Maps to grid-row.

CSSProperties["gridRowEnd"]

Sets the row end line. Maps to grid-row-end.

CSSProperties["gridRowStart"]

Sets the row start line. Maps to grid-row-start.

CSSProperties["justifySelf"]

Aligns this element inside its grid area along the inline axis, overriding the container justifyItems. Maps to justify-self.

CSSProperties["order"]

Sets the visual order of this element among its siblings. Does not change DOM order. Maps to order.

CSSProperties["placeSelf"]

Sets align-self and justify-self together. Maps to place-self.

Flex item

<Flex>
  <Grid flex="1 1 auto" flexBasis="auto" flexGrow={1} flexShrink={1} />
</Flex>

These props apply when Grid is a child of a flex container, such as Flex. Grid itself stays display: grid or display: inline-grid.

CSSProperties["flex"]

Sets the flex shorthand for grow, shrink, and basis. Maps to flex.

CSSProperties["flexBasis"]

Sets the flex basis. Maps to flex-basis.

CSSProperties["flexDirection"]

Sets flex-direction on this element. Grid renders as a grid, so this property has no effect unless style or className changes display to flex.

CSSProperties["flexGrow"]

Sets how much the item grows when the flex container has extra space. Maps to flex-grow.

CSSProperties["flexShrink"]

Sets how much the item shrinks when the flex container overflows. Maps to flex-shrink.

Responsive

<Grid
  sm={{ templateColumns: "1fr" }}
  md={{ templateColumns: "repeat(2, 1fr)" }}
  lg={{ templateColumns: "repeat(3, 1fr)" }}
  xl={{ gap: "4" }}
  xxl={{ alignItems: "center" }}
/>

Each of sm, md, lg, xl, and xxl is LayoutUtilProps plus the track props (templateColumns, templateRows, templateAreas, autoColumns, autoRows). LayoutUtilProps includes nested sm, md, lg, xl, and xxl keys. Those nested keys type-check and are ignored at runtime. inline is not part of the breakpoint object.Grid.Item breakpoint props are Omit<LayoutUtilProps, "sm" | "md" | "lg" | "xl" | "xxl">. They do not include track props or nested breakpoint keys.

LayoutUtilProps & { templateColumns?: CSSProperties["gridTemplateColumns"]; templateRows?: CSSProperties["gridTemplateRows"]; templateAreas?: CSSProperties["gridTemplateAreas"]; autoColumns?: CSSProperties["gridAutoColumns"]; autoRows?: CSSProperties["gridAutoRows"] }

Applies at viewport widths of 640px and wider.

Applies at viewport widths of 768px and wider.

Applies at viewport widths of 1024px and wider.

Applies at viewport widths of 1280px and wider.

Applies at viewport widths of 1536px and wider.

<Grid templateColumns="repeat(3, 1fr)" gap="2">
  <Grid.Item gridColumn="span 2" alignSelf="center">
    Cell
  </Grid.Item>
  <Grid.Item>Cell</Grid.Item>
</Grid>

`Grid.Item` Props

Grid.Item renders a div and accepts every div prop, including children, className, style, and ref.It accepts the placement, flex, alignment, gap, and responsive props below. It does not accept inline, templateColumns, templateRows, templateAreas, autoColumns, or autoRows — set those on Grid.Placement props position the cell in the parent grid. flex, flexBasis, flexGrow, and flexShrink apply when the parent is a flex container. alignItems, justifyItems, alignContent, justifyContent, placeItems, placeContent, gap, rowGap, columnGap, and flexDirection are written on the cell and take effect only when that cell’s computed display is grid or flex. Grid.Item sets display to revert-layer, which computes to block for a div in a normal page. Set display with style or className when the cell itself must be a grid or flex container.Layout props override the same CSS property on style.

Placement

CSSProperties["alignSelf"]

Aligns the cell inside its grid area along the block axis, overriding the container alignItems. Also applies when the cell is a flex item. Maps to align-self.

CSSProperties["gridArea"]

Places the cell in a named area, or sets the row and column lines in one value. Maps to grid-area.

CSSProperties["gridColumn"]

Sets the column start and end lines. Shorthand for gridColumnStart and gridColumnEnd. Maps to grid-column.

CSSProperties["gridColumnEnd"]

Sets the column end line. Maps to grid-column-end.

CSSProperties["gridColumnStart"]

Sets the column start line. Maps to grid-column-start.

CSSProperties["gridRow"]

Sets the row start and end lines. Shorthand for gridRowStart and gridRowEnd. Maps to grid-row.

CSSProperties["gridRowEnd"]

Sets the row end line. Maps to grid-row-end.

CSSProperties["gridRowStart"]

Sets the row start line. Maps to grid-row-start.

CSSProperties["justifySelf"]

Aligns the cell inside its grid area along the inline axis, overriding the container justifyItems. Maps to justify-self.

CSSProperties["order"]

Sets the visual order of the cell among its siblings. Does not change DOM order. Maps to order.

CSSProperties["placeSelf"]

Sets align-self and justify-self together. Maps to place-self.

Flex item

CSSProperties["flex"]

Sets the flex shorthand for grow, shrink, and basis when the parent is a flex container. Maps to flex.

CSSProperties["flexBasis"]

Sets the flex basis when the parent is a flex container. Maps to flex-basis.

CSSProperties["flexDirection"]

Sets flex-direction on the cell. Takes effect when the cell’s display is flex. Maps to flex-direction.

CSSProperties["flexGrow"]

Sets how much the cell grows when its flex parent has extra space. Maps to flex-grow.

CSSProperties["flexShrink"]

Sets how much the cell shrinks when its flex parent overflows. Maps to flex-shrink.

Alignment and spacing

CSSProperties["alignContent"]

Sets align-content on the cell. Takes effect when the cell’s display is grid or flex.

CSSProperties["alignItems"]

Sets align-items on the cell. Takes effect when the cell’s display is grid or flex.

GapSize

Sets the column gap on the cell. Accepts a spacing step from 0 through 14, or "half". Takes effect when the cell’s display is grid or flex. See Spacing.

GapSize

Sets the row and column gaps on the cell. Accepts a spacing step from 0 through 14, or "half". Takes effect when the cell’s display is grid or flex. See Spacing.

CSSProperties["justifyContent"]

Sets justify-content on the cell. Takes effect when the cell’s display is grid or flex.

CSSProperties["justifyItems"]

Sets justify-items on the cell. Takes effect when the cell’s display is grid.

CSSProperties["placeContent"]

Sets place-content on the cell. Takes effect when the cell’s display is grid or flex.

CSSProperties["placeItems"]

Sets place-items on the cell. Takes effect when the cell’s display is grid.

GapSize

Sets the row gap on the cell. Accepts a spacing step from 0 through 14, or "half". Takes effect when the cell’s display is grid or flex. See Spacing.

Responsive

Breakpoint objects on Grid.Item use the same viewport widths as Grid. The published type is Omit<LayoutUtilProps, "sm" | "md" | "lg" | "xl" | "xxl">: every Grid.Item prop except the breakpoint props themselves. Unlike Grid, this object does not include track props or nested breakpoint keys.
